ADJUSTABLE GAS STRUTS

TYPE D RIGID LOCKING IN BOTH DIRECTIONS

Home Page > Product

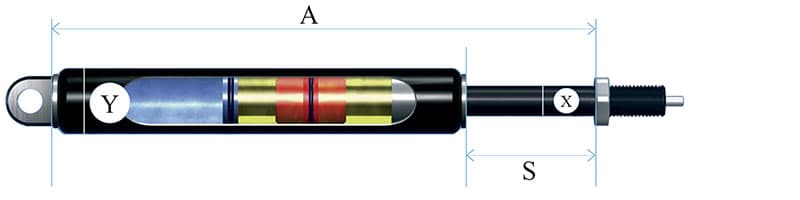

Diameter X/Y

Φ/mm

S

mm

A

mm

Force

F1(N)

Locking Force

in pull

direction（N）

Locking Force

in push

direction（N）

8/18

10-300

≥3×S+46

40-700

4000

4000

8/22

10-300

≥3×S+46

40-700

4000

4000

8/24

10-300

≥3×S+46

40-700

4000

4000

10/22

10-700

≥3×S+56

80-1000

7000

7000

10/24

10-700

≥3×S+56

80-1000

8000

8000

10/28

10-700

≥3×S+56

80-1000

10000

10000



Material

Surface finishing

Tube

20# steel

electrostatic coating/graphite

similiar to RAL7024

Piston rod

45# steel

QPQ finish

Adjustable Gas Struts are also called lockable gas struts, which are commonly used in applications requiring the ability to lock out the stroke in a desired position without the need for external locking mechanisms.


• JKMotion Series offers four types of locking gas struts. Type D: Rigid locking in tension and compression direction.

• Definable strut characteristics and extension speed.

• Gas struts have very high internal pressure. Do not open or heat up.

• Gas struts are operated at a temperature between -30°C and 80°C.

• Gas struts must not be opened bent or affected vertically by side forces.

• Different end fitting systems for fast and easy mounting.

• Our gas struts have a 3-year guarantee.

• For environments like marine or food industries we have the same quality in a Stainless Steel 316 available.
